The Maximum Penetration and Matchless Performance
Products - 650 DTH Drill Rigs
Related Links

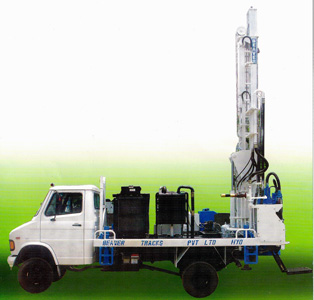

Technical Specifications of BEAVER 650 DRILLING RIG MOUNTED ON LCV:
|
||
Capacity of drilling
|
 |
Dia 4 1/2" to 6" bore hole to a depth of 650 ft. under favourable drilling conditions.
|
Prime mover of the hydraulic pumps used
|
|
Truck Engine/Deck Engine
|
Hydraulic Pumps Used
|
|
Vane Type/Gear Type
|
Maximum operating pressure
|
|
160 Bar
|
Hydraulic Oil Tank capacity
|
|
400 Ltrs.
|
Mast
|
|
Suitable to handle 10 ft. rod
|
Mast Construction
|
|
Channel Structure
|
Centralizer opening
|
|
250 mm
|
Pull up Force
|
|
6500 Kg
|
Pull Down Force
|
|
4400 Kg
|
Pull up Speed
|
|
24 Mts/Min
|
Rotation Speed
|
|
0 to 100 rpm
|
Max. torque
|
|
220 Kgmts
|
Hydraulic jacts (Stabilizers)
|
|
4 nos. of dia 100x63x610 mm stroke
|
Break Out wrench (to open the drill joints)
|
|
Dia 80 mm x 300 mm stroke
|
Wear Injection Pump
|
|
36 Lpm @ 450 psi
|
Mug Pump
|
|
Hydraulically operated mug pump is mounted on the rig
|
Accessories/Optional Attachments
|
|
Welding set, winch with jib and boom arrangement on the top of the mast.
|
Note: Due to the continuous development, all the above specifications are subject to change
